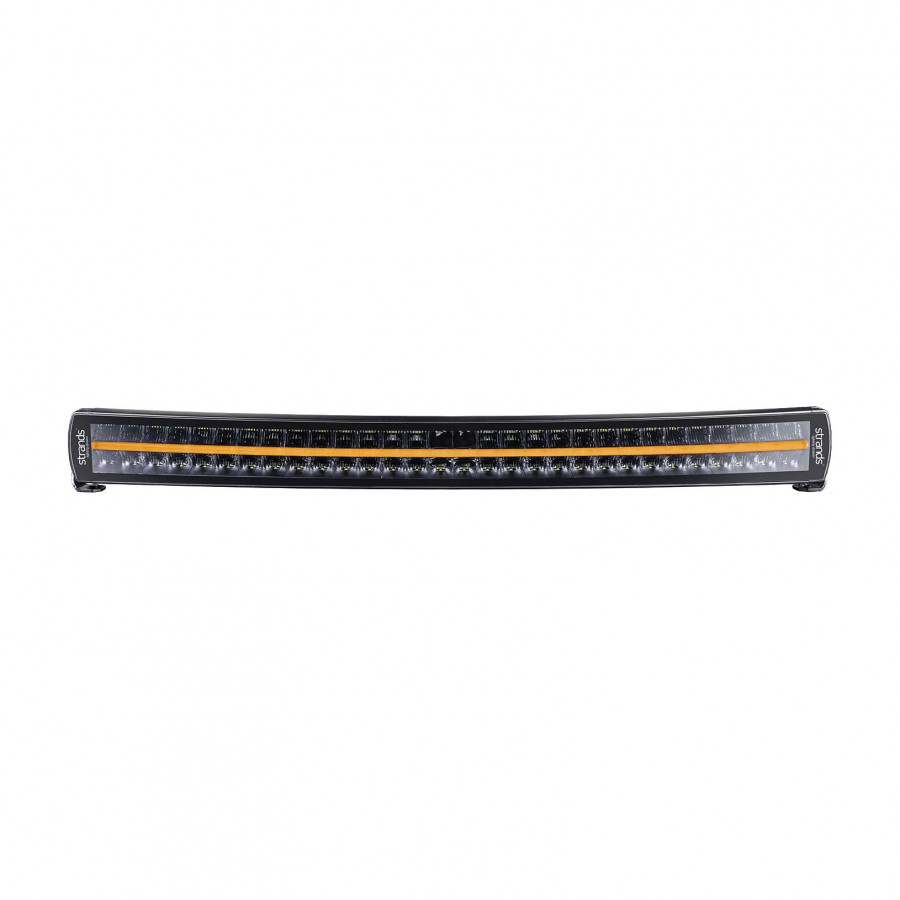

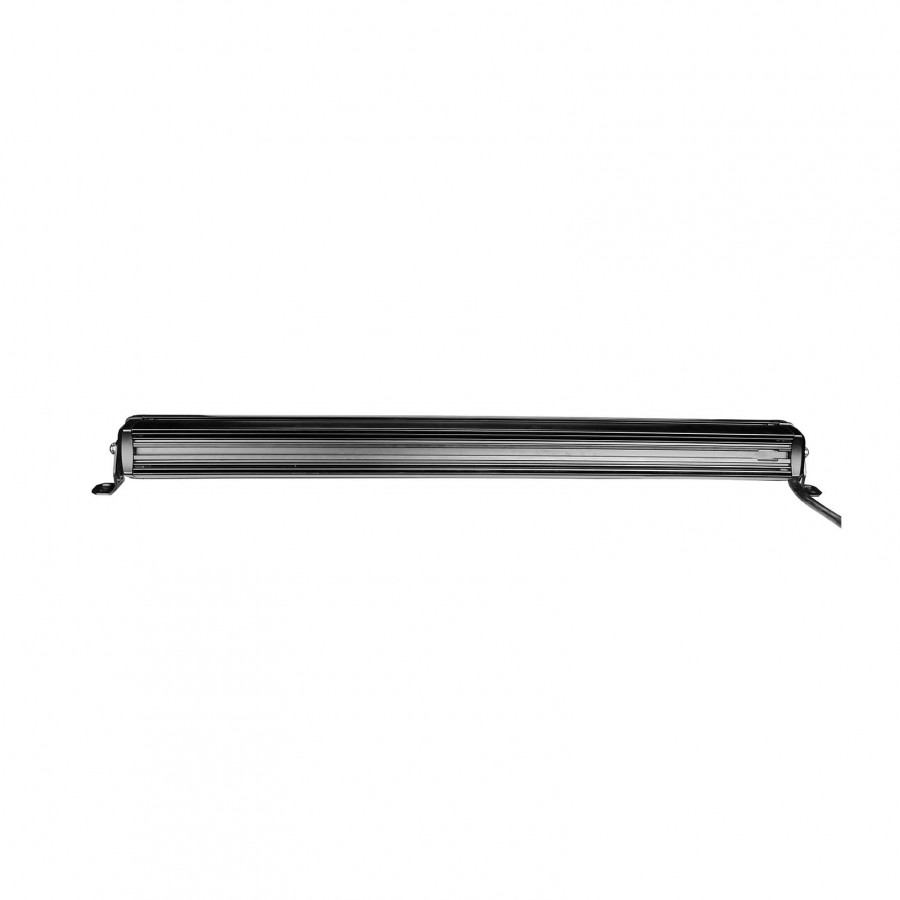

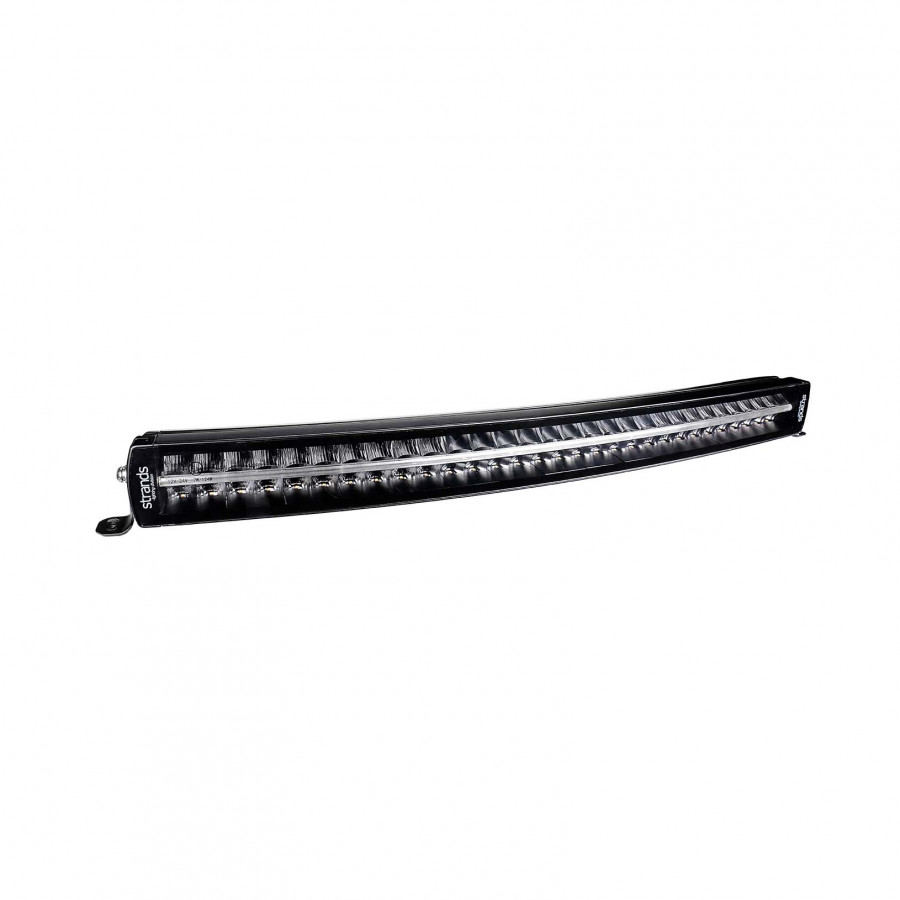

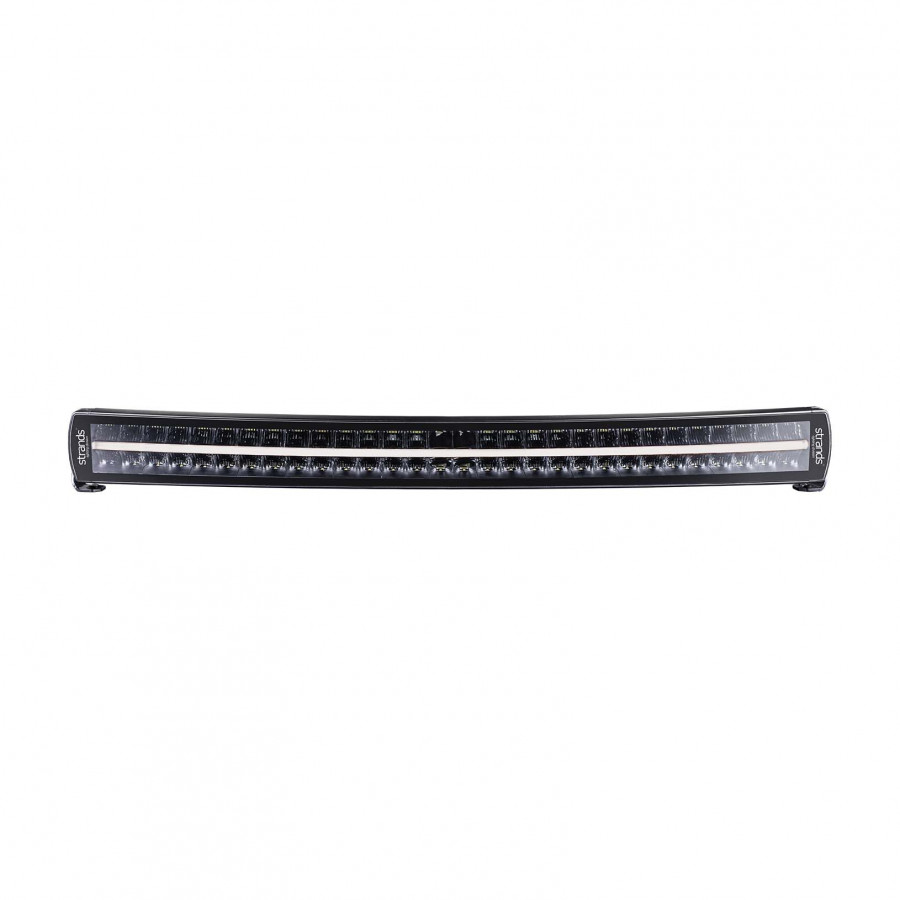

SIBERIA DRC 32

A double-row LED bar in a curved shape. Created from exclusive material choices and innovative features. Provides an optimized light beam with maximum width, without losing length. Comes with duo position light, choose between amber and white.

Type of LED — Osram
PCS LED´s — 60
Voltage (V DC) — 10-40V DC
Theoretical effect (w) 12V — 300
Theoretical effect (w) 24V — 300
Consumption (w) 12V — High beam: 283.5 White position light: 7.5 Amber position light: 22
Consumption (w) 24V — High beam: 280 White position light: 7.5 Amber position light: 22
Theoretical lumen — 24000
Actual lumen — 12663

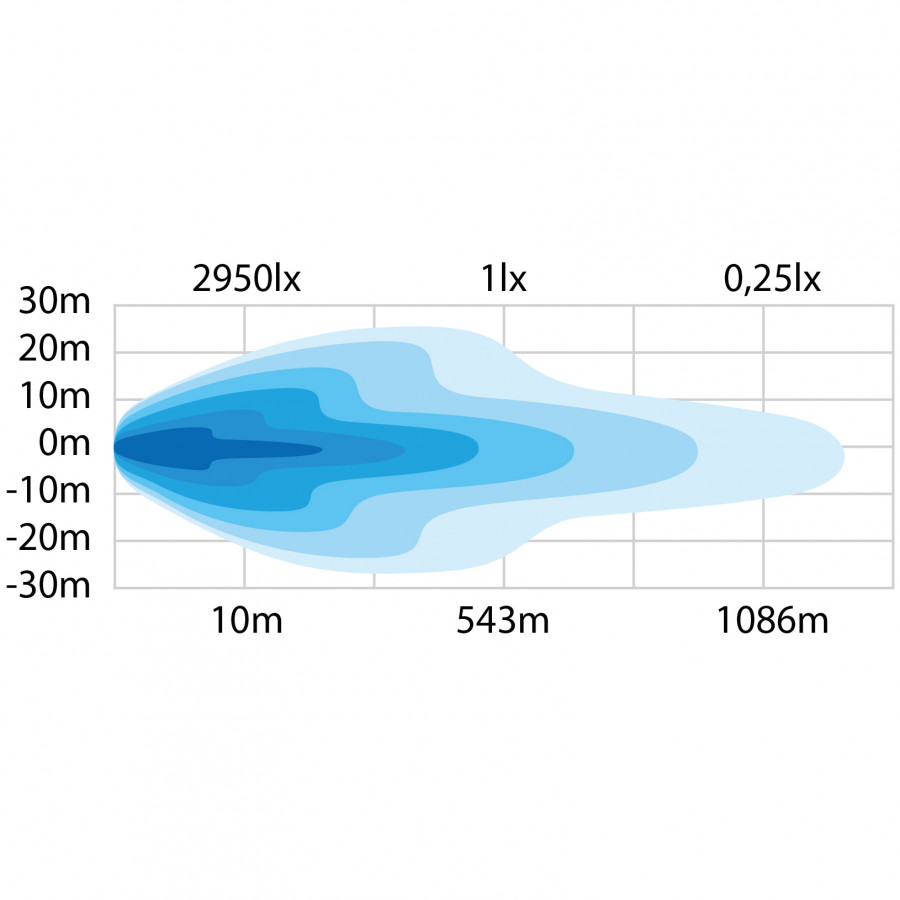

1 LUX @ m — 543
Kelvin — 6000
IP-class — 67/69K
Colour housing — Black
Colour lens — Clear
Colour LED´s — White and Amber
Beam pattern — Combobeam
Position light — Yes
Connection — Cable
Cable length (mm) — 2500
Material bracket — Stainless steel
Material housing/chassi — Aluminium
Material lens — Polycarbonate
Length (mm) — 823,16
Depth (mm) — 71,6
Height (mm) — 76
Height including bracket (mm) — 89
Operating temperature — -20°C - +45°C
EMC — ECE R10
Black cable — - (Negative)
Red cable — + (Positive)
White cable — White Position light
Yellow cable — Amber Position light
Mounting details included — Screws. washers. bolts
